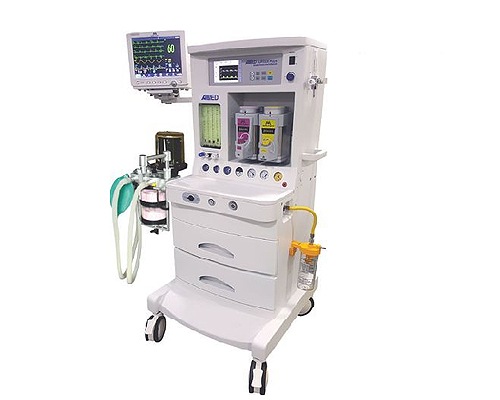

Anaesthesia Workstation

Specifications:

  • Storage Space: Two spacious drawers for keeping essential anaesthesia kit/accessories
  • Castors & Foot rest: Large roller bearing anti-static castor with front brakes & foot rest
  • Writing Surface: Wide table top for writing
  • Monitor Shelf: Wide Monitor shelf at eye level

  • Cylinder Yokes: Color coded gas specific (pin indexed) yokes with sliding stainless steel clamping bars for easy handling. Holding Two O2 and One N2O 5 Ltr. water capacity cylinders. Maximum number of Yokes – 4 (2O2 + 2N2O)
  • Non-return/Pressure Relief Valve: Minimizes risk of back flow of gases, blows off when pressure exceeds 125 Cm H2O
  • Regulators: Designed for higher efficiency, long service life and reliability for O2 and N2O
  • O2 Flush: Emergency oxygen flush switch at table level to give 35-70 Ltrs/min for emergencies
  • O2 failure warning alarm: Self-activated electro-pneumatic audio visual warning device to indicate drop in O2 pressure below 2.5 Bar
  • Nitro Lock: It enables N2O to cut off if Oxygen fails
  • Hypoxic Guard: Mixing device to proportion the N2O in such a way that minimum of 25% O2 is always present in the breathing gas mixture
  • Common Gas Outlet (CGO): Conveniently located CGO with ISO tapers for 22 & 15mm connections
  • Pipe Line Gas Inlets: Non-interchangeable screw threaded (NIST) pipeline inlets. In case of drop in piped gas pressure the pin index cylinders take over automatically
  • Pressure Gauges: Large diameter, color coded gauges fitted at the convenient angle for better visibility and clarity. One for each of the pin indexed yokes and one each corresponding to piped gas inlet
  • Selectatec Brackets: Twin Selectatec Block
  • Breathing Circuits: Bains and Closed circuit provided as standard


Features:

  • Rust free framework
  • Deep spacious drawer units
  • Dual cascaded rotameters for O2 and N2O as standard
  • Wide monitoring shelf at eye level
  • Convenient common gas outlet
  • Hook for breathing circuit
  • Open-Close circuit switch control
  • Convenient mounting of circle absorber
  • Twin Selectatec mountings for 2 Agent Specific Vaporisers
  • Pin Indexed yokes Two for O2 and One for N2O
  • Anaesthetic gas scavenging port
  • Large, roller bearing, anti-static castors with front wheel brakes
  • Electrical outlets for connecting monitors
  • Central pipeline connections with gas specific NIST connectors
